Three-phase Hybrid Inverter Parameters
| Model No. | iINV-HB3-8.0KH | iINV-HB3-10.0KH | iINV-HB3-12.0KH | iINV-HB3-15.0KH | |
| PV input | |||||
| Max. input power | 12kW | 15kW | 18kW | 22.5kW | |
| Max. input voltage | 1000V | ||||
| Rated input voltage | 700V | ||||
| MPPT voltage range | 180-850V | ||||
| Full power MPPT voltage range | 330-850V | 430-850V | 510-850V | 620-850V | |
| Start-up voltage | 125V | ||||
| Max. input current | 13A/13A | ||||
| Max. short-circuit current | 16A/16A | ||||
| NO. of MPPT trackers | 2 | ||||
| NO. of strings per MPPT | 2 | ||||
| AC output | |||||
| Nominal output power to grid | 8kVA | 10kVA | 12kVA | 15kVA | |
| Max. output power | 8.8kVA | 11.0kVA | 13.2kVA | 16.5kVA | |
| Max. apparent power from grid | 17.6kVA | 22kVA | 26.4kVA | 33kVA | |
| Max. apparent current from grid | 25.5A | 31.8A | 38.2A | 47.6A | |
| Nominal output current to grid | 11.5A | 14.4A | 17.3A | 21.7A | |
| Max. output current | 12.7A | 15.9A | 19.1A | 23.8A | |
| Rated voltage | 380/400V | ||||
| Frequency | 50/60Hz | ||||
| Power factor | 0.99 lagging – 0.99 leading | ||||
| THDi | <3% | ||||
| Output topology | 3W+N+PE | ||||
| Battery Data | |||||
| Battery type | Lithium/Lead-acid | ||||
| Voltage range | 125-600V | ||||
| Battery working voltage range | 150-550V | ||||
| Max. charging current | 50A | ||||
| Max. discharging current | 50A | ||||
| Rated. charging current | 40A | ||||
| Rated. discharging current | 40A | ||||
| Communication interface | CAN | ||||
| EPS output | |||||
| Nominal output power | 8kVA | 10kVA | 12kVA | 15kVA | |
| Max. output power | 8.8kVA | 11.0kVA | 13.2kVA | 16.5kVA | |
| Nominal output voltage | 400V,3W+N+PE | ||||
| Nominal output current | 11.5A | 14.4A | 17.3A | 21.7A | |
| Max. output current | 12.7A | 15.9A | 19.1A | 23.8A | |
| Nominal output frequency | 50/60Hz | ||||
| Switch time | <10ms | ||||
| THDu | <2% | ||||
| General data | |||||
| MPPT efficiency | 99.9% | ||||
| Max. efficiency | 97.9% | 98.2% | 98.2% | 97.6% | |
| Euro. efficiency | 97.2% | 97.5% | 97.5% | 97.8% | |
| Max. battery charging/discharging efficiency | 97.5% | 97.5% | 97.6% | 97.8% | |
| Dimensions (WxDxH) | 596*220*566mm | ||||
| Weight | 32kg | ||||
| Operation temperature | -25C-60℃ | ||||
| Relative humidity | 0-95%(no condensing) | ||||
| Altitude | 4,000 (>2,000 Derating) | ||||
| Protection grade | IP65 | ||||
| Cooling | Natural | ||||
| Noise | ≤25dB | ||||
| Self-consumption | <20W | ||||
| Features | |||||
| HMI | LCD,APP | ||||
| Communication | CAN / RS485 / WIFI / GPRS (optional) | ||||
| Certification | |||||
| Certificates | CE, RoHS,EN50549,VDE, G99, RfG, NC RFG, PTPIREE, PPDS, NRS,CEI | ||||

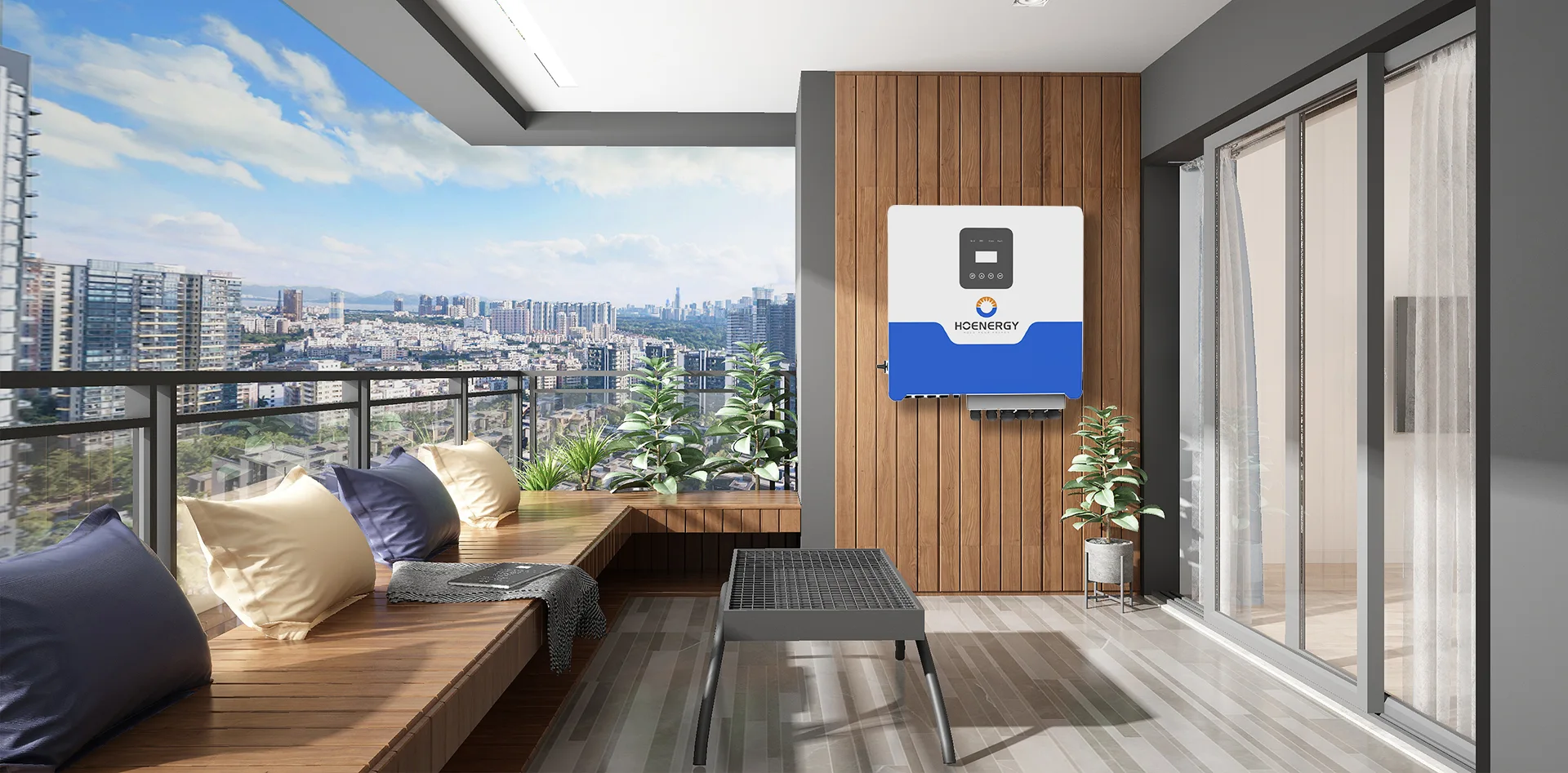

Three-phase Hybrid Inverter Features
1
Flexible
Lightweight and compact easy to install
IP65 protection grade, wall-mounted to save space
Seamless transition to backup mode for protection against power outages
2
Reliable
Built-in EMS to optimize battery management
Provides 100 % unbalanced loads in backup mode
Support battery reverse polarity protection and anti-backflow function
3
Advanced
Remote software updates and customizable settings
Touch flexible commissioning with smartphone
Free online monitoring to enhance energy management for end users, installer and retailer
